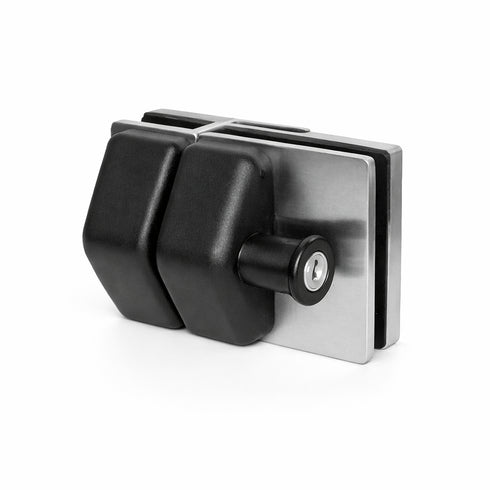

A self-closing lock / latch (SS316) is the final critical component of a frameless glass pool gate system—it ensures the gate automatically latches shut for safety compliance.

Here’s a clean, professional breakdown 👇

🔒 What It Is

A self-closing latch (SS316):

• Automatically engages and locks when the gate closes

• Works together with self-closing hinges

• Designed specifically for frameless glass pool gates

• Often includes magnetic or mechanical locking systems

Most modern systems are magnetic latches, which provide smoother and more reliable engagement than traditional latches

🛠️ Key Features

• Material: SS316 (marine-grade → rust-resistant, ideal for pools)

• Latch type:

  • Magnetic (most common, premium)

  • Mechanical (basic spring latch)

• Mount types:

  • Glass-to-glass

  • Glass-to-wall/post

• Glass thickness:

  • Typically 8mm–12mm tempered glass

• Locking options:

  • Key-lockable (for added safety)

  • Child-safe release (top pull or side pull)

📐 Typical Specs

• Closing action: Automatic latch on contact

• Gap tolerance: ~10–25 mm between gate and panel

• Opening direction: Usually outward (pool code requirement)

• Height: Installed high enough to be child-resistant

🧱 Installation Basics

• Installed opposite the hinges:

  • On fixed glass panel or wall/post

• Requires:

  • Pre-drilled glass holes (depending on model)

  • Proper alignment with gate strike plate

• Must be adjusted so:

  • Gate fully latches every time without manual push

👍 Advantages

• Ensures pool safety compliance (very important)

• Magnetic versions:

  • Smooth, silent closing

  • Less wear over time

• SS316:

  • Long lifespan even in chlorine/salt environments

⚠️ Things to Watch

• Misalignment = latch won’t engage (most common issue)

• Cheap latches (plastic or SS304):

  • Fail quickly outdoors

• Must match:

  • Glass thickness

  • Hinge closing force

💡 Pro Tip (from installs)

The latch only works properly if your hinges are tuned correctly:

• Adjust hinges first → make sure gate fully closes on its own

• Then align latch so it “catches” naturally without forcing

If the gate slams or stops short → latch performance suffers.

🧩 Full System Reminder

For a proper frameless glass gate setup, you always need:

1. Adjustable spigots (for panels)

2. Adjustable hinge set (pair)

3. Self-closing latch (this piece)
