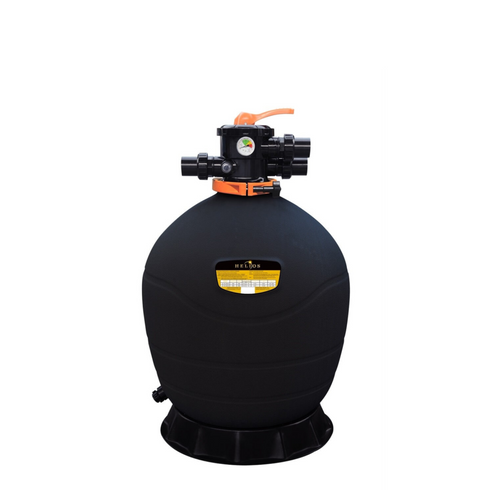

Helios 24" Sand Filter for Swimming Pool

HELIOS quality for 24” sand filter for swimming pools

• This robust, high-quality filter is made from high-density polyethylene (HDPE) using
blow molding technology.
• The unique double-layered side:
• Improves filtration efficiency and allows for complete backwashing.
• Allows for smoother water circulation due to a 30% reduction in restrictions.

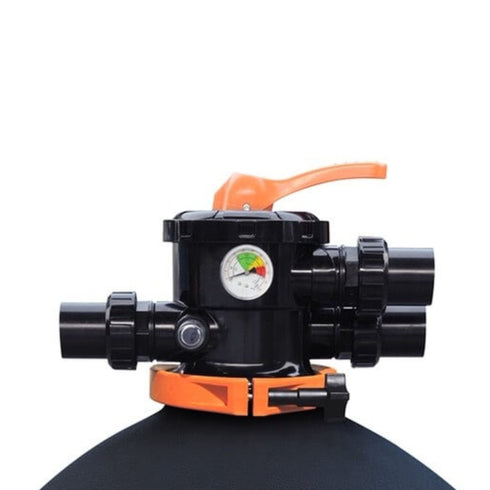

• The resin clamp allows for 360° valve rotation to simplify installation.
• Durable, safe, and corrosion-resistant: suitable for all types of pools.
• Suitable for pools with various disinfection systems such as salt chlorine generators, UV systems,
ozone systems, and dosing pumps.
• The inlet and outlet feature quick-connect fittings for easier connection to a
standard 1.5" (1/4") hose.

Product #: 27SDG24

Model : 27-SDG24
Hose Size : 1.5 inch
Filter Surface Area : 0.27 m²
Flow Rate : 13.5 m³/h
Sand Size : 0.5 - 0.8 mm
Sand Weight : 140 kg
Tank Volume : 0.26 m³
Valve Volume : 0.02 m³
Tank Weight : 15.2 kg
Valve Weight : 3 kg
